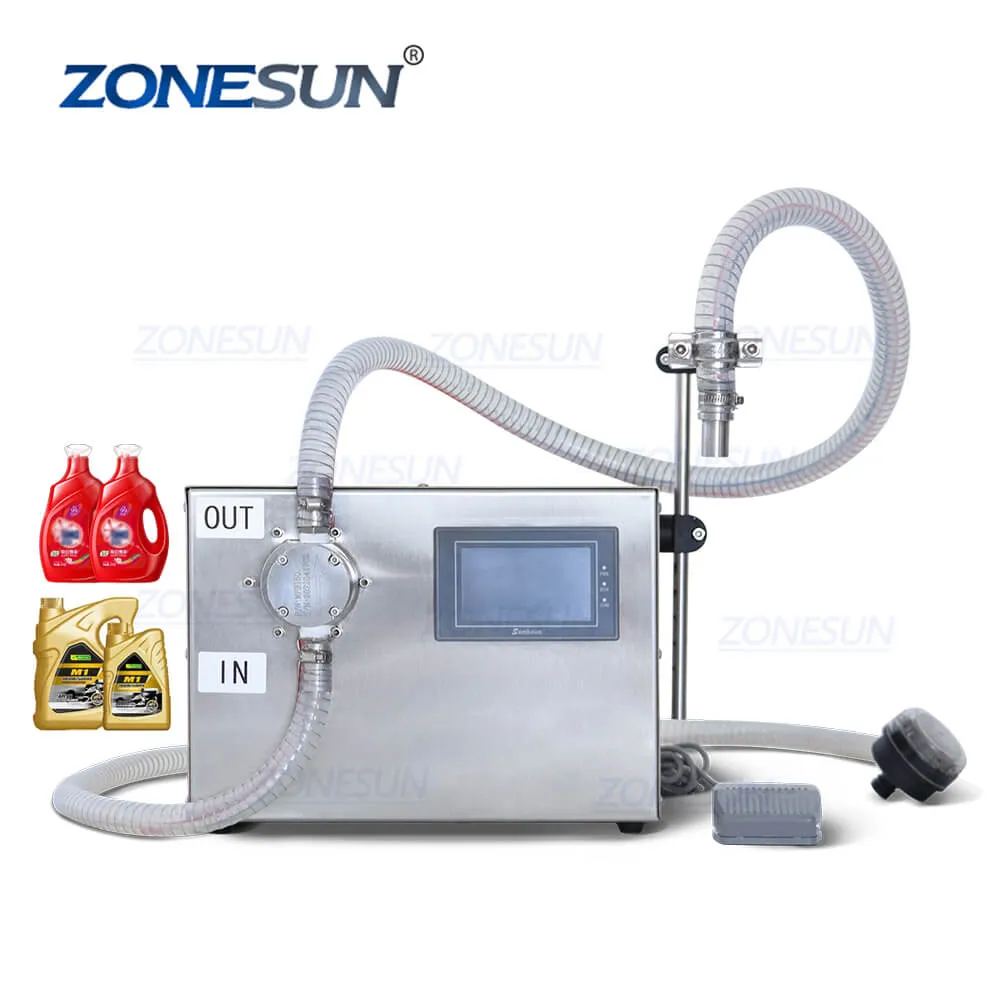

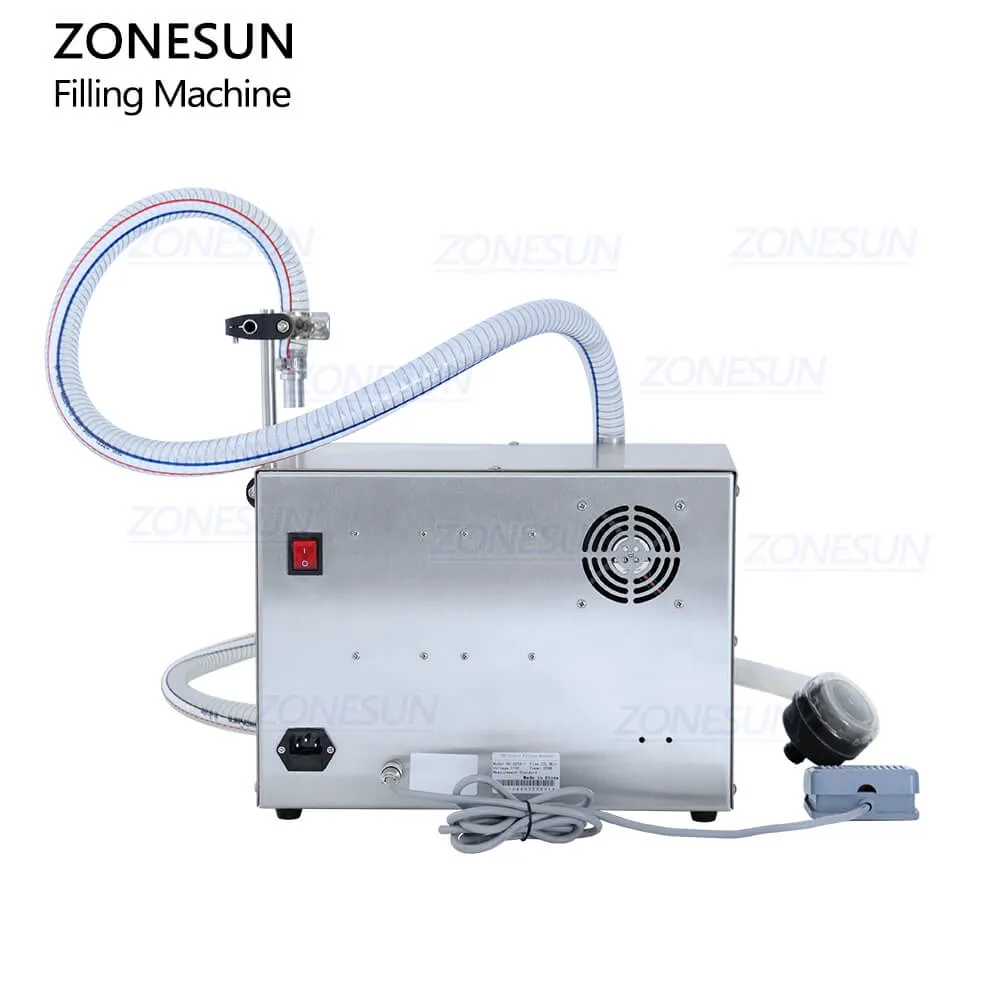

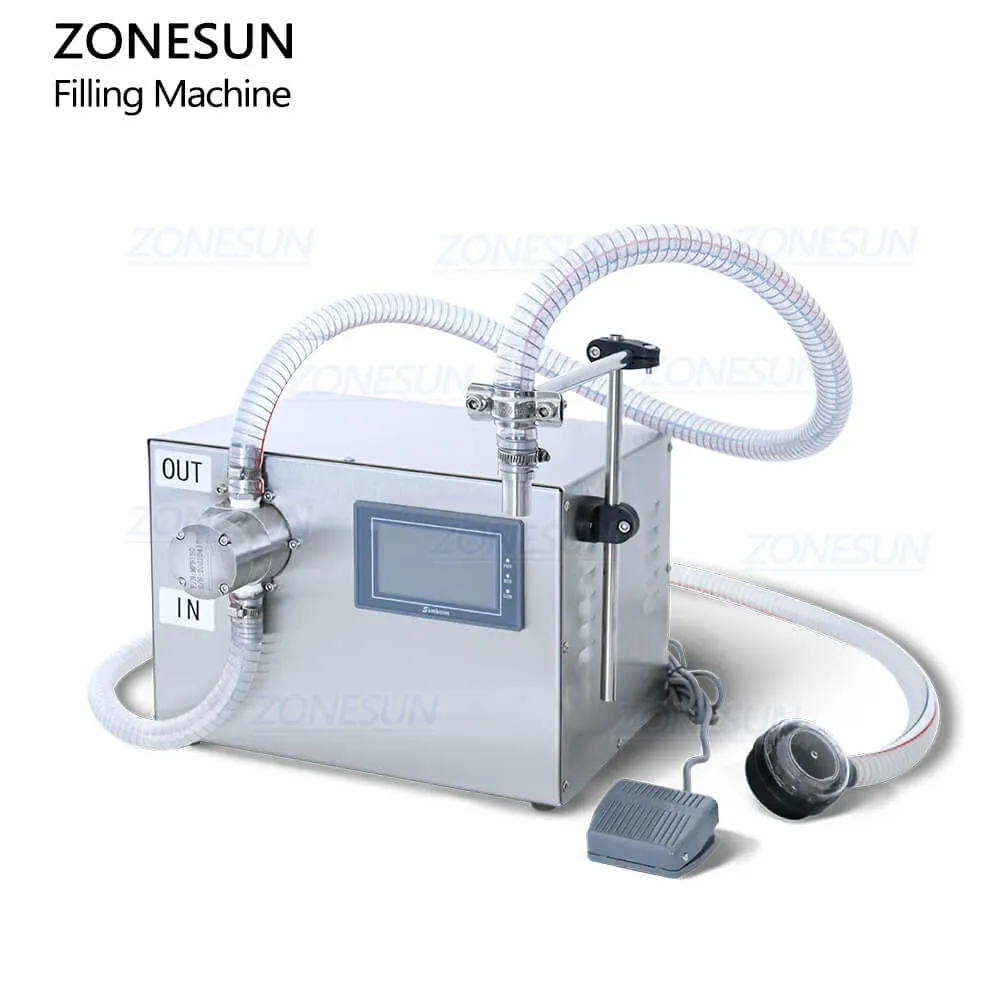

This small filling machine has larger filling flow rate and is suitable for filling thicker liquid like engine oil, .laundry detergent.It has touch screen control panel,quantitative filling is more convenient when adjusting the machine.This machine is widely usedi n food, daily chemical and cosmetics industries.

Parameter

• Machine Model:ZS-G25A
• Voltage:220V/110V 50-60Hz
• Power:550W
• Filling Pump:316 Stainless Steel Magnetic Pump
• Max Flow Rate:22L/min(based on water)
• Filling Accuracy:±1%
• Liquid Temperature:<120℃
• Max Suction Distance:4m
• Memory Function out of power:Available
• Package Size:About 520*420*330mm
• Gross Weight:About 17kg

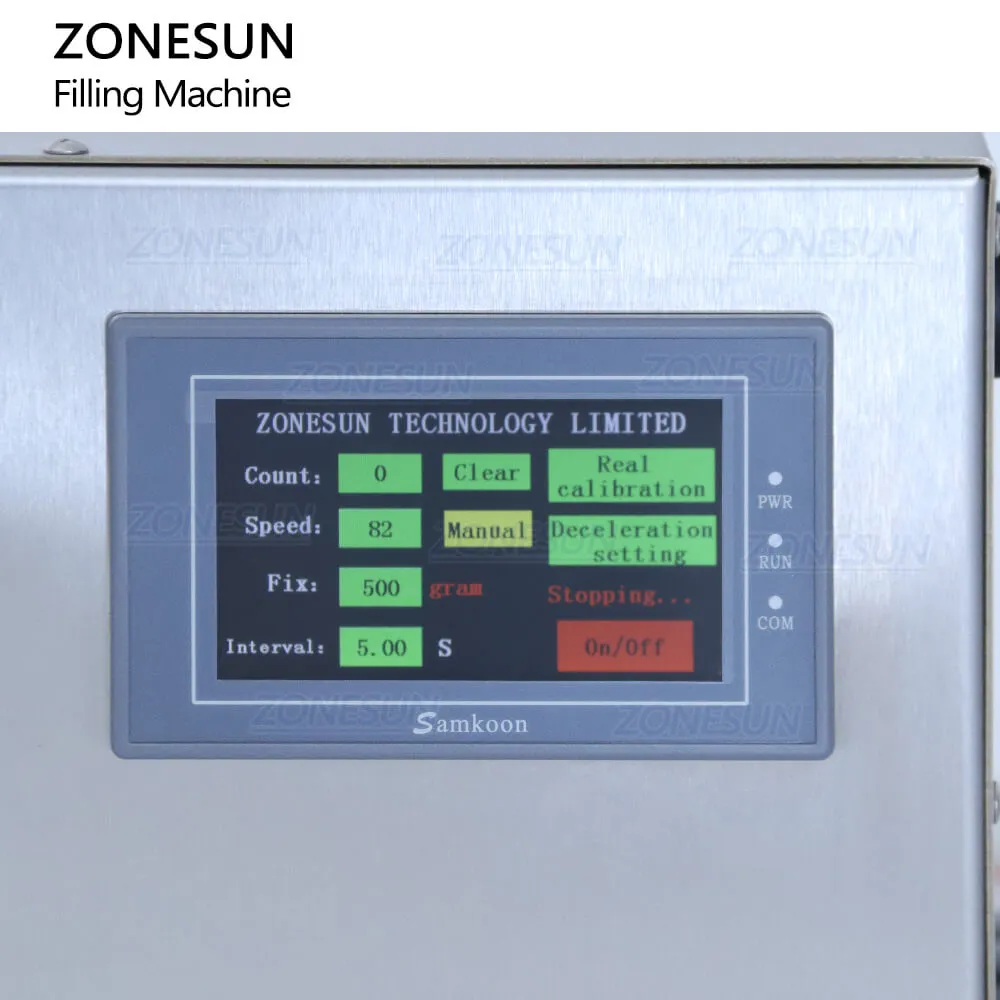

With touch screen panel, it iseasy to set or adjust workingparameters.Language of panelcan be customized according tocustomers'need.

Made of stainless steel, the magneticpump has feature of high filling accuracy and high temperature resistance. It can fill 22L/min at max,greatly improving efficiency.

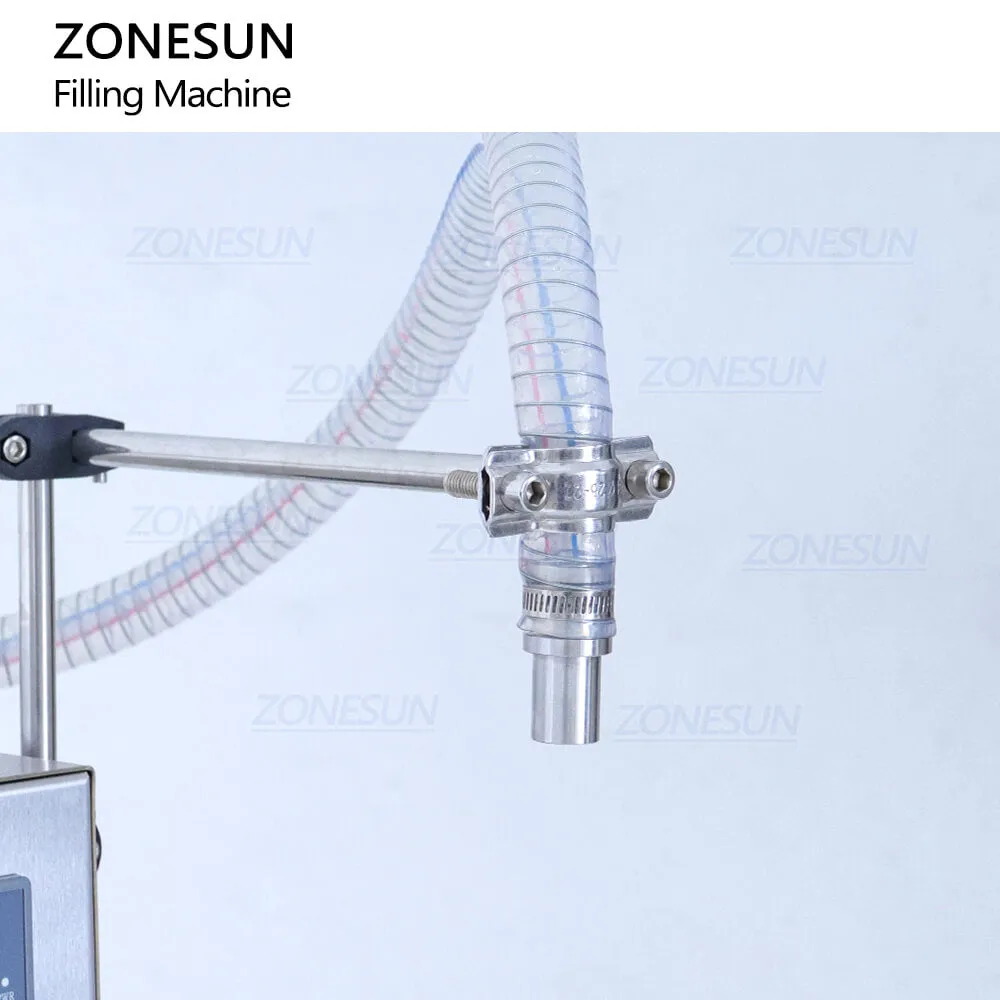

With anti-dripping function, it canfill liquid accurately.The workingheight of filling nozzle can be adjusted according to bottle height.

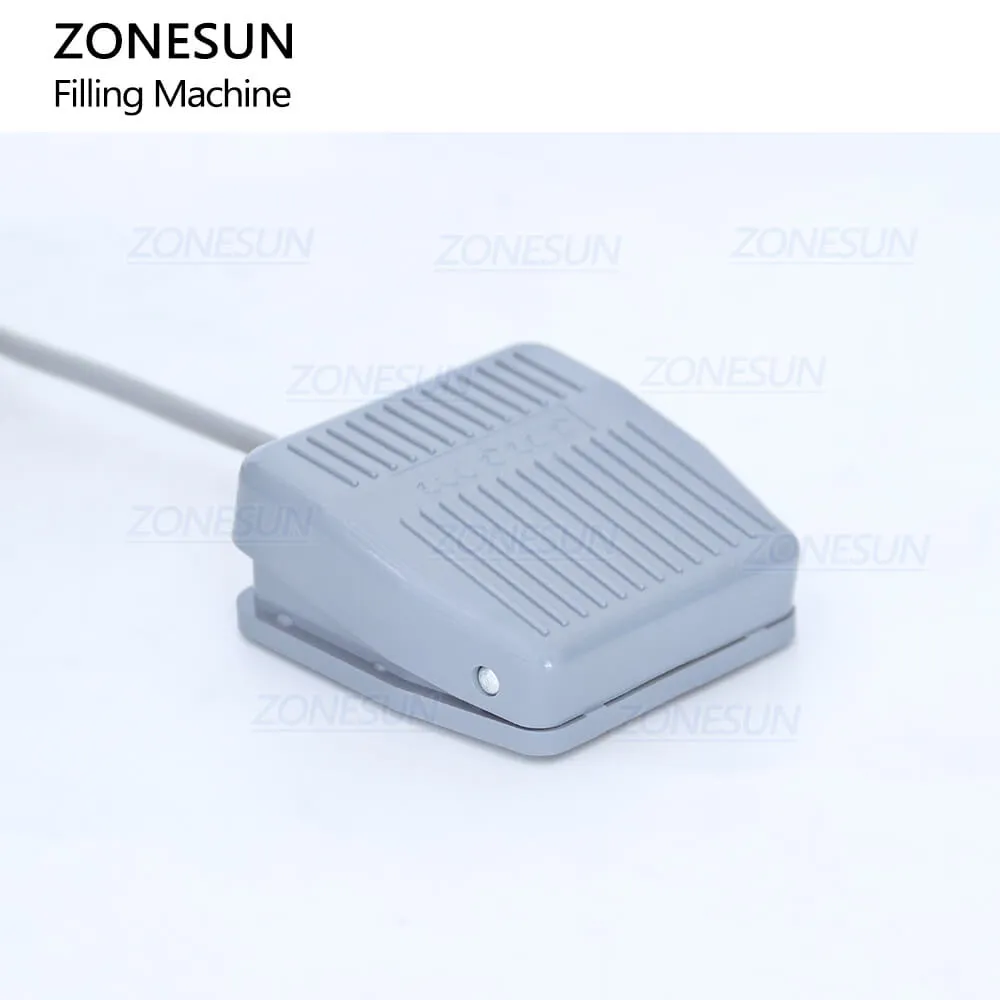

This machine has two workingmodes: Automatic working modeand pedal switch control mode,which can be switched as needed.

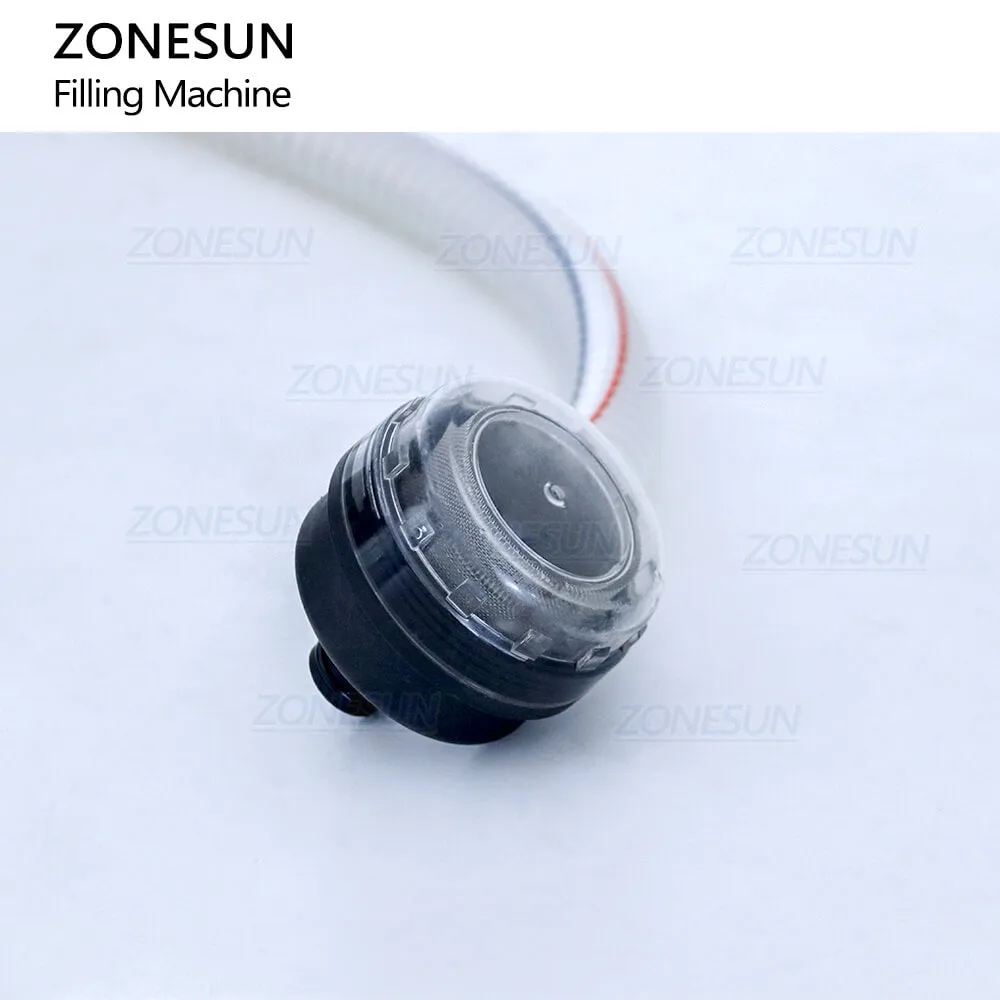

With high-quality filter, it can filterimpurities in the liquid, preventingpump from getting clogged andensuring production quality.
